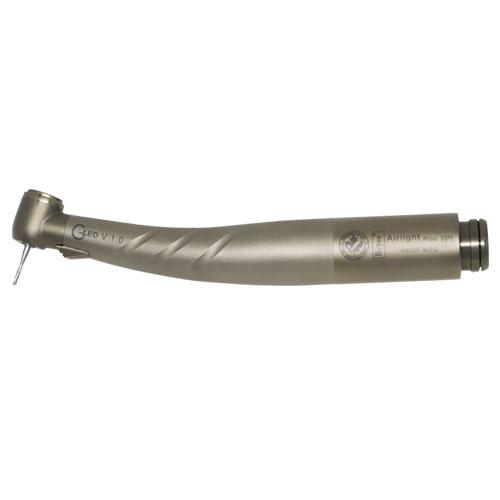

This handpiece was designed with the veterinary market in mind. Since many practices are still operating high speed dental machines that do not have built-in chip air, this handpiece is designed to provide those units with the fine mist that chip air produces.
With triple water ports is one of the most powerful air-driven handpieces on the market, with up to 25 watts of torque. It is designed to handle up to 60 PSI of air pressure, providing peace of mind to the operator. The truly innovative built-in micro-generator eliminates the need for a fiber optic system from a dental delivery unit.
The triple water spray effectively cools the entire surface of the bur to avoid overheating. The titanium surface enhancement technology creates a beautiful micro-textured and scratch-proof surface, reducing the possibility of slippage during operation. Specially designed ceramic ball bearings create a smooth and quiet operation and provide superior torque and a long lifespan.
The replacement turbine for this handpiece is Beyes BE-C2360, and the back cap wrench is BE-HSP2301.
|
Mini Head |
Standard Head |
| Warranty |
12 Months |
12 Months |
| Head Size (Width x Height) |
10.8 mm x 13.0 mm |
12.5 mm x 13.1 mm |
| Colour Temperature (K) |
5,500 |
5,500 |
| Brightness (LUX) |
25,500 |
25,500 |
| Drive Air Pressure (PSI) |
40-60 |
40-60 |
| Power (WATT) |
23 |
25 |
| Speed (RPM) |
410,000 |
380,000 |
| Rotary Instruments |
FG burs according to EN ISO 1797-1 |
FG burs according to EN ISO 1797-1 |
| Φ / max.length (MM) |
1.6 / 25 |
1.6 / 25 |
| Water Spray |
Triple |
Triple |
| Connection |
Beyes® PD Connection |
Beyes® PD Connection |
